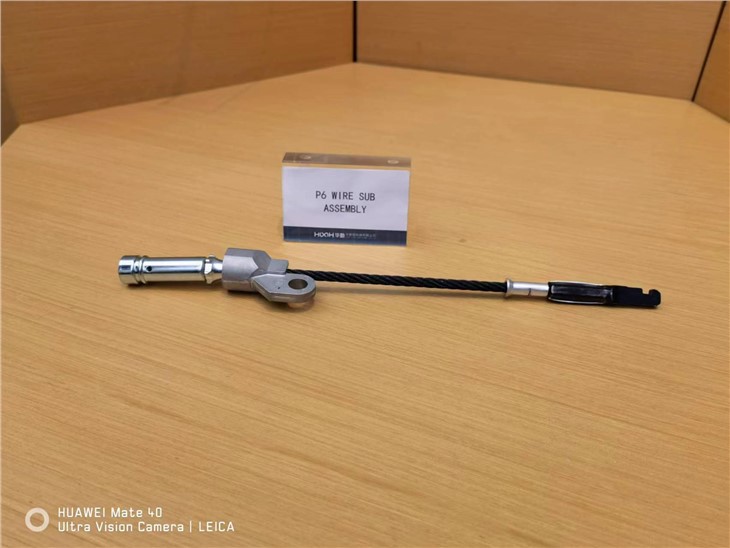

Steel Wire Rope for Automobile Safety Belt

The Long steel wire rope used in automobile safety belt is made of high quality carbon steel wire rod, refined process control, professional customized production, which can meet the various use needs of customers. The product characteristics are mainly shown as follows:

1. High breaking tension, strong impact resistance, fully meet the limit of the operating conditions;

2. Good corrosion resistance, in wet and thermal environment test or neutral salt spray test (NSS) conditions, 24~50 hours without red rust;

3. Good fatigue resistance;

4. Excellent machinability, can meet all kinds of processing and assembly types.





Diameter (mm)	Reference Weight kg/100m	Min Breaking Load KN			Min Breaking Load/ kN
		1770 MPa	1960 MPa	2160 MPa
3.9	6.0	10.4	11.6	12.7	14.1
4	6.3	11.0	12.2	13.4	14.8
4.2	7.0	12.1	13.4	14.8	16.3
4.3	7.3	12.7	14.1	15.5	17.1
4.5	8.0	13.9	15.4	17.0	18.8
6	14.3	24.7	27.4	30.2	33.4
6.2	15.2	26.4	29.2	32.2	35.6
6.3	15.7	27.3	30.2	33.3	36.8
6.5	16.7	29.0	32.2	35.5	39.2







6×19-WSC

Diameter (mm)	Reference Weight kg/100m	Min Breaking Load KN			Min Breaking Load/ kN
		1770 MPa	1960 MPa	2160 MPa
3.9	6.0	10.4	11.6	12.7	14.1
4	6.3	11.0	12.2	13.4	14.8
4.2	7.0	12.1	13.4	14.8	16.3
4.3	7.3	12.7	14.1	15.5	17.1
4.5	8.0	13.9	15.4	17.0	18.8
6	14.3	24.7	27.4	30.2	33.4
6.2	15.2	26.4	29.2	32.2	35.6
6.3	15.7	27.3	30.2	33.3	36.8
6.5	16.7	29.0	32.2	35.5	39.2
